ROOM DIMENSIONS (3) [DIMENSIONS]
id098010990700

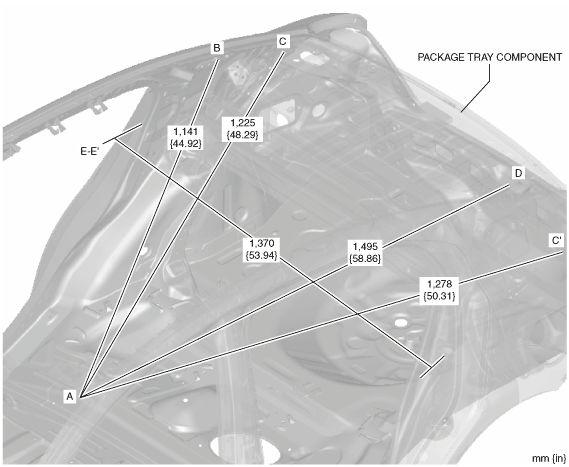

4SD
am2zzb00000680
|

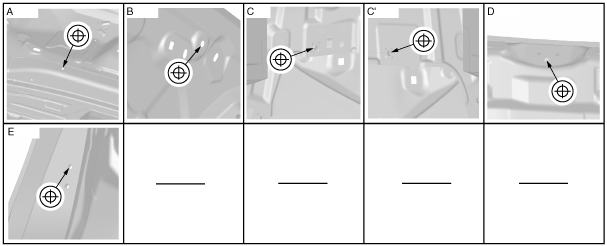

am2zzb00000681
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Crossmember No.3 datum hole
|
φ10 {0.39}
|
|
B
|
C-pillar trim installation hole
|
φ8.4 {0.33}
|
|
C
|
Theft-deterrent horn installation nut
|
M6
|
|
C’
|
Fuel pump control unit installation nut
|
M6
|
|
D
|
Liftgate striker installation hole
|
φ10 {0.39}
|
|
E
|
Rear door striker installation nut
|
M8
|

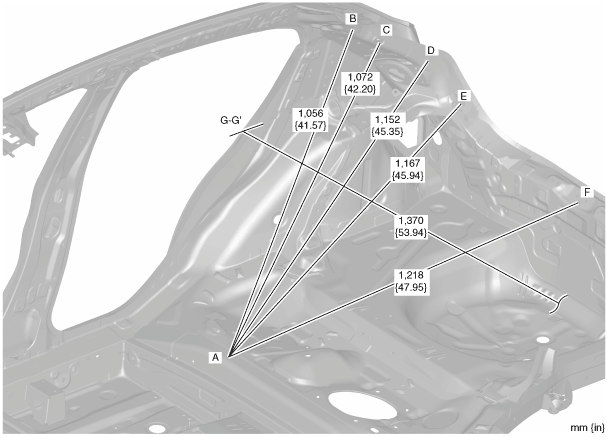

5HB
am2zzb00000702
|

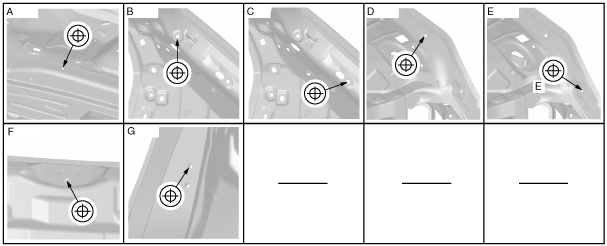

adejjb00000332
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Crossmember No.3 datum hole
|
φ10 {0.39}
|
|
B
|
C-pillar trim installation hole
|
φ8.6 {0.34}
|
|
C
|
Trunk side upper trim installation hole
|
φ8.6 {0.34}
|
|
D
|
Trunk side upper trim installation hole
|
φ8.6 {0.34}
|
|
E
|
Trunk side upper trim installation hole
|
φ8.6 {0.34}
|
|
F
|
Liftgate striker installation hole
|
φ12 {0.47}
|
|
G
|
Rear door striker installation nut
|
M8
|
