REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010990800

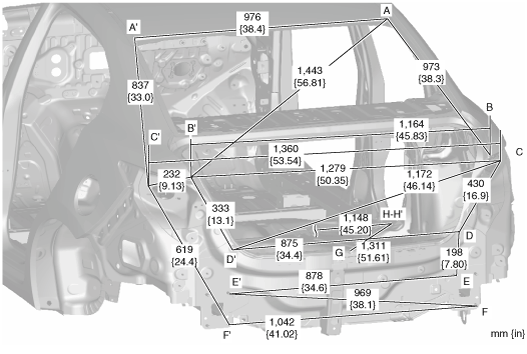

4SD
am2zzb00000676
|
am2zzb00000677
|
|

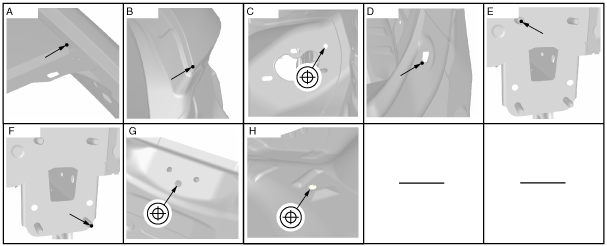

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof panel projection location
|
—
|
|
B
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
C
|
Corner plate datum hole
|
φ10 {0.39}
|
|
D
|
Rear bumper grommet installation square hole
|
9 X 9 {0.4 X 0.4}
|
|
E
|
Rear bumper reinforcement installation bolt
|
M10
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Trunk lid striker installation hole
|
φ10 {0.39}
|
|
H
|
Rear seat belt anchor installation bolt
|
φ13 {0.51}
|

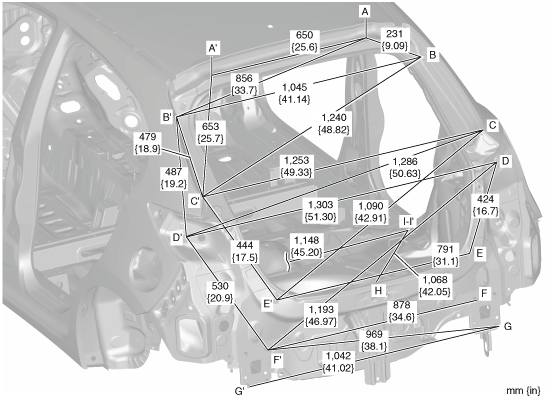

5HB
am2zzb00000703
|
adejjb00000339
|
|

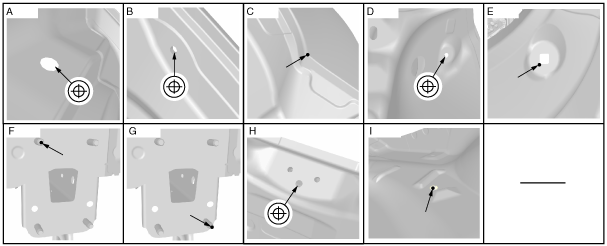

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ14 {0.55}
|
|
B
|
Liftgate stay damper installation nut
|
M8
|
|
C
|
Cabin side frame (outer) (rear fender panel) projection location
|
—
|
|
D
|
Corner plate datum hole
|
φ8 {0.3}
|
|
E
|
Rear bumper grommet installation square hole
|
9 X 9 {0.4 X 0.4}
|
|
F
|
Rear bumper reinforcement installation bolt
|
M10
|
|
G
|
Rear bumper reinforcement installation bolt
|
M10
|
|
H
|
Liftgate striker installation hole
|
φ10 {0.39}
|
|
I
|
Rear seat belt anchor installation bolt
|
φ13 {0.51}
|
