DC-DC CONVERTER (i-ELOOP) [i-ELOOP]

id131704503000


Purpose, Function

•  To supply the power generated by the generator to the vehicle’s electrical devices, the DC-DC converter (i-ELOOP) performs control according to the engine operation conditions.
•  To prevent electrical circuit failure, part over-heating, or ignition due to large amounts of current, if the power supplied from the capacitor (i-ELOOP) exceeds the rated voltage of the vehicle’s electrical devices, power cannot be supplied directly to the vehicle’s electrical devices. As a result, the DC-DC converter (i-ELOOP) lowers the maximum 24.3 V voltage to 12 V, and then supplies power to the vehicle’s electrical devices.

Construction

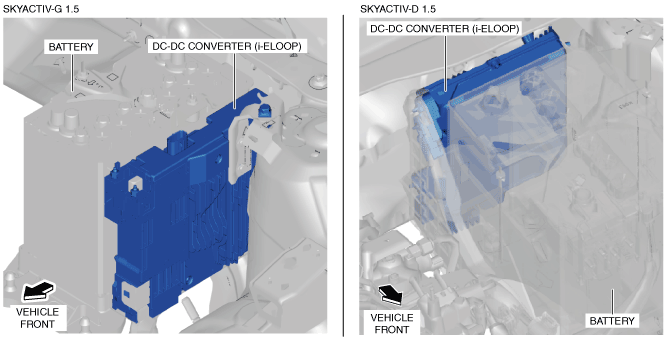

•  The DC-DC converter (i-ELOOP) is located behind the battery.
am2zzn00003858

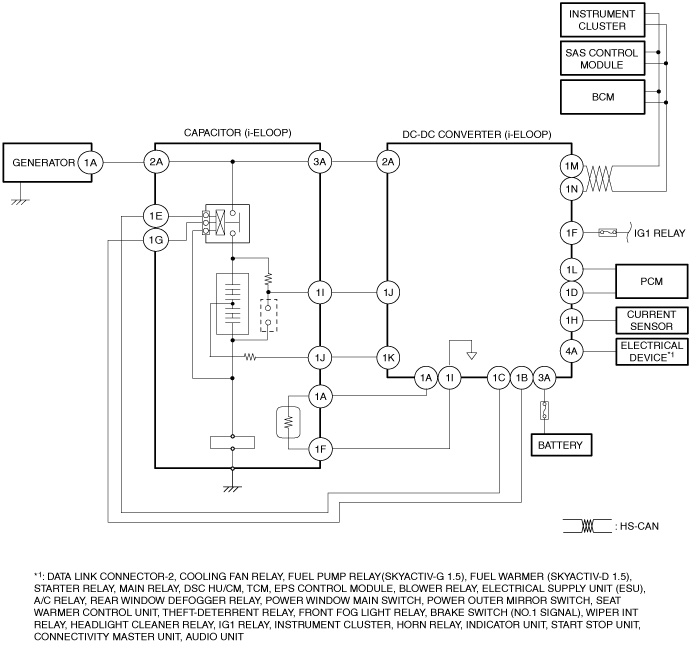

•  The DC-DC converter (i-ELOOP) has the following inputs/outputs.
am2zzn00003845
•  The DC-DC converter (i-ELOOP) switches the operation content according to the vehicle conditions. Refer to the [i-ELOOP] for details. (See i-ELOOP [i-ELOOP].)

Fail-safe

DTC

Fail-safe
P0A12:00
•  Inhibits engine-stop by operating the i-stop function.
P2502:00
P2503:00
P2504:00
P1794:00
•  Inhibits engine-stop by operating the i-stop function. (With i-stop)
•  Inhibits the i-ELOOP control.
•  Switches to bypass mode which shuts the capacitor (i-ELOOP) off.
U0001:88
•  Switches to bypass mode which shuts the capacitor (i-ELOOP) off.
U0100:00
U3000:49
•  Inhibits engine-stop by operating the i-stop function. (With i-stop)
•  Switches to bypass mode which shuts the capacitor (i-ELOOP) off.
