SYSTEM WIRING DIAGRAM [SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R)]

id1503b1003000

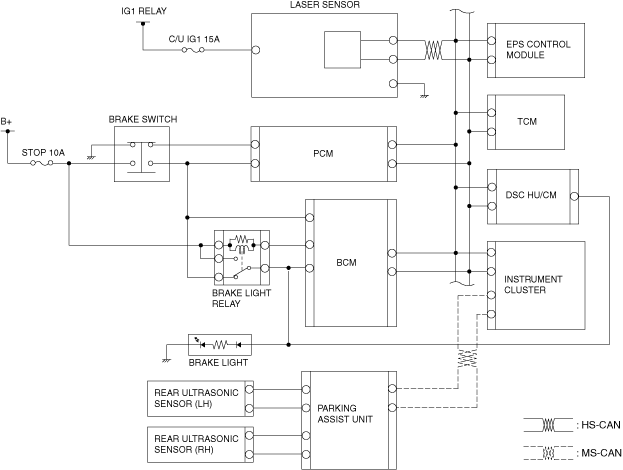

System wiring diagram (Without Mazda Radar Cruise Control (MRCC) system)

am2zzn00004783

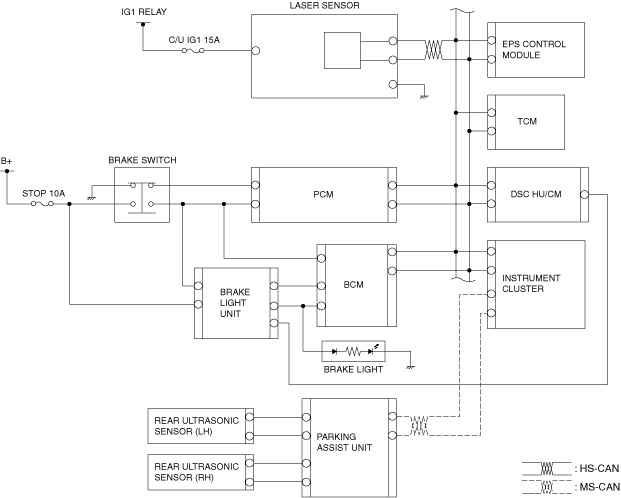

System wiring diagram (With Mazda Radar Cruise Control (MRCC) system)

am2zzn00004784
