ADAPTIVE LED HEADLIGHTS CONTROL MODULE

id151100001600


Purpose

•  The adaptive LED headlights control module determines the surroundings and vehicle conditions based on the signals from each module, and changes the headlight illumination range based on the determination result.

Functions


Surroundings and vehicle conditions determination function

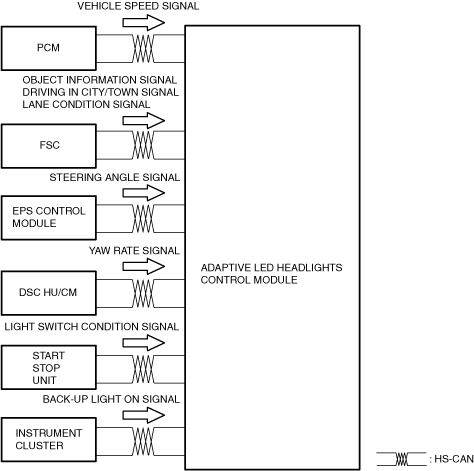

•  The adaptive LED headlights control module determines the surroundings and vehicle conditions based on the following signals.
ac3wzn00001353


Automatic configuration function

•  When the ignition is switched ON (engine off or on) after the adaptive LED headlights control module is replaced, the adaptive LED headlights control module reads the vehicle specification information sent via CAN communication from the instrument cluster, and stores the vehicle specification information.


On-board diagnostic function

•  The adaptive LED headlights control module is equipped with an on-board diagnosis function which records DTCs in the event of a malfunction.


Construction

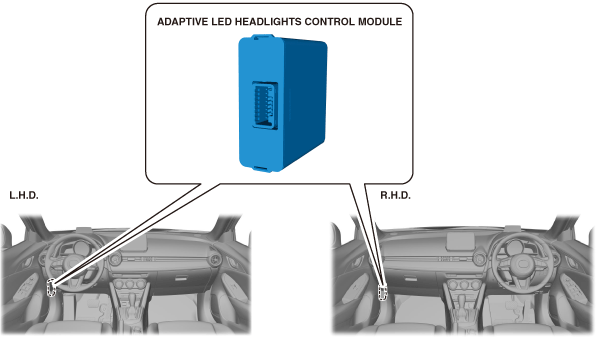

•  The adaptive LED headlights control module is located inside the dashboard.
ac3wzn00001354

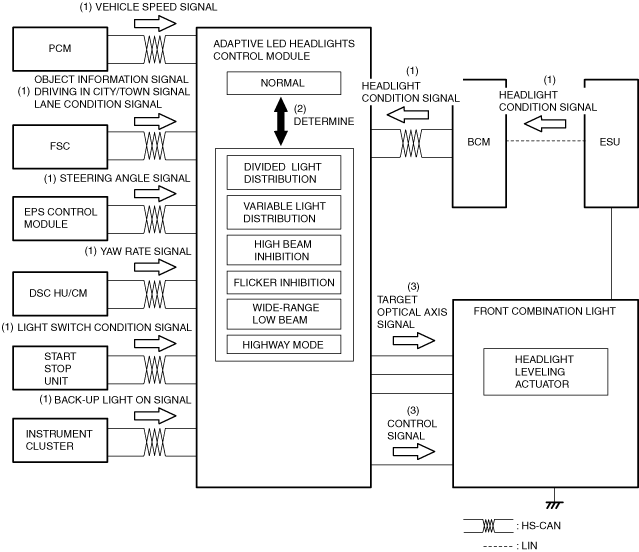

Operation

1.  The adaptive LED headlights control module receives (1) each signal from each module.

2.  The adaptive LED headlights control module determines (2) the surroundings and vehicle conditions based on the received each signal.

3.  The adaptive LED headlights control module sends (3) a control signal or target optical axis signal to the front combination light based on the determination result.

ac3wzn00001355


Fail-safe

DTC

Fail-safe
B1041:54
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling operation is stopped.
B1044:01
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1437:86
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1437:87
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1439:86
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1439:87
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
B1D00:13
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
B1D01:13
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
B1D02:86
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
B1D02:87
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
B1D03:86
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
B1D03:87
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
C0051:86
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0001:88
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0100:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0121:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0131:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0140:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0155:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0214:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U023A:00
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0320:09
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0415:68
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0420:68
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0423:68
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U0515:68
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U053B:68
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  Control of the headlight auto leveling system is continued.
U2005:86
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U2300:54
•  Control of the headlight auto leveling system is continued.
U2300:55
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U2300:56
•  Control of the headlight auto leveling system is continued.
U3000:42
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3000:49
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3003:16
•  When the setting is on using the personalization feature, the headlights HI turn on. (When setting is off using personalization feature, headlight HI illumination on/off depends on control by front body control module (FBCM))
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3003:17
•  The headlight leveling actuator is stopped at the position when the malfunction is determined.
