RADAR UNIT REMOVAL/INSTALLATION

id152000004400

Warning

•  If the radar unit is installed at an incorrect angle, the radar unit cannot detect obstructions and the system may not operate normally. When installing the radar unit, verify that there is no damage or deformation to the installation part (shroud panel) and perform the installation correctly.

•  If the radar unit (front bumper, radiator grille) gets hit, the radar unit angle could change and obstructions cannot be detected correctly which could result in an accident. In this case, always verify the DTC, perform the radar unit aiming adjustment, and verify that the installation angle is deviated. (See RADAR UNIT AIMING.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL.)(See FRONT BUMPER INSTALLATION.)

3.  Remove the crash zone sensor. (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See CRASH ZONE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

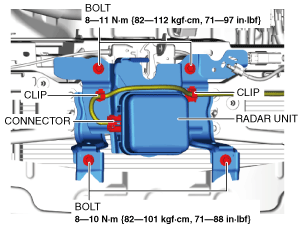

4.  Disconnect the connector.

adejjw00015537

5.  Remove the clips.

6.  Remove the bolts.

7.  Remove the radar unit.

8.  Install in the reverse order of removal.

9.  Perform the radar unit aiming. (See RADAR UNIT AIMING.)
