CRUISE CONTROL SWITCH INSPECTION [MAZDA RADAR CRUISE CONTROL (MRCC) SYSTEM]

id1520000052a1

Resistance Inspection

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Switch the ignition off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Measure the resistance between cruise control switches E and A under the following conditions:

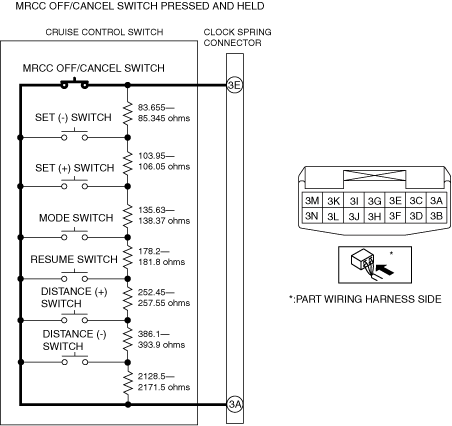

•  Resistance with MRCC OFF / CANCEL switch pressed and held

―  0 ohms

am2zzw00014460

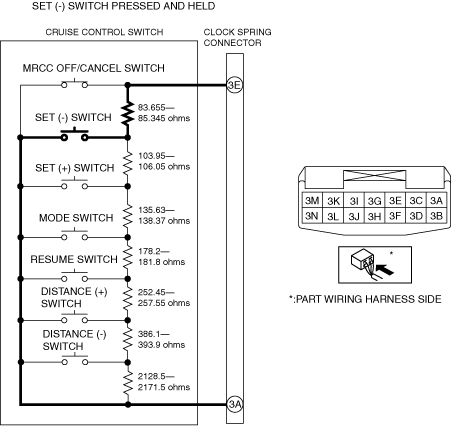

•  Resistance with SET (-) switch pressed and held

―  83.655—85.345 ohms

am2zzw00014461

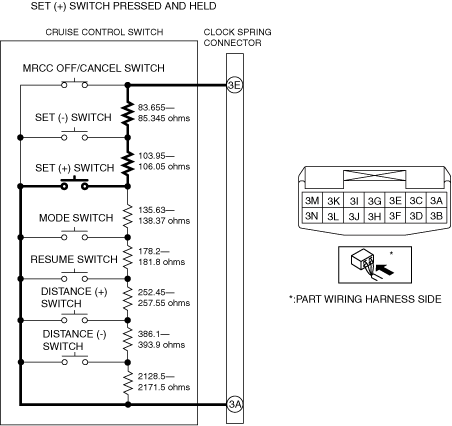

•  Resistance with SET (+) switch pressed and held

―  187.605—191.395 ohms

am2zzw00014462

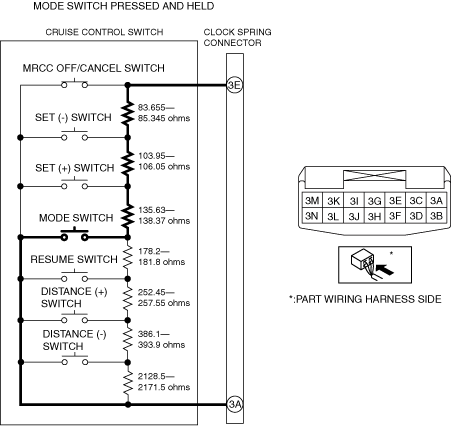

•  Resistance with MODE switch pressed and held

―  323.235—329.765 ohms

am2zzw00014463

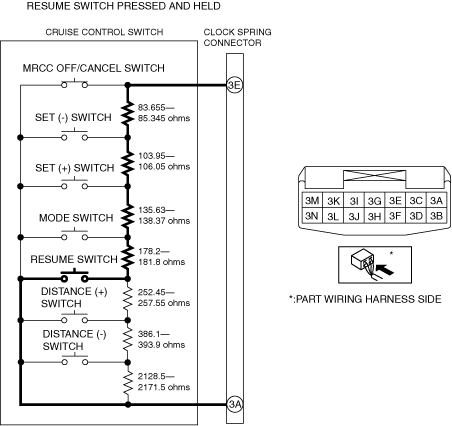

•  Resistance with RESUME switch pressed and held

―  501.435—511.565 ohms

am2zzw00014464

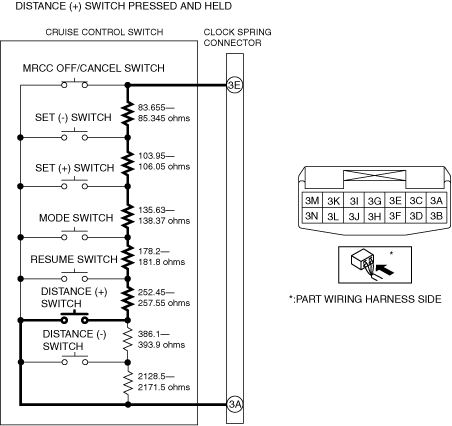

•  Resistance with DISTANCE (+) switch pressed and held

―  753.885—769.115 ohms

am2zzw00014465

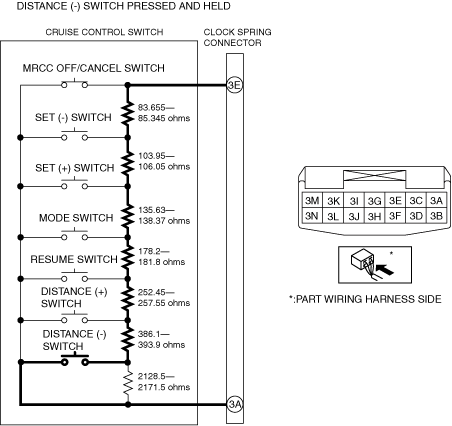

•  Resistance with DISTANCE (-) switch pressed and held

―  1,139.985—1,163.015 ohms

am2zzw00014466

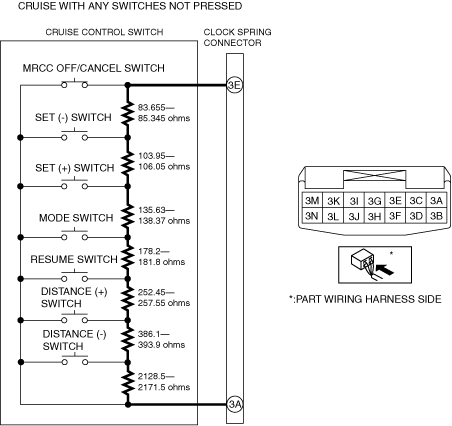

•  Resistance with any switches not pressed

―  3,325.485—3,334.515 ohms

am2zzw00014467

LED Illumination Inspection

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Switch the ignition off.

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

4.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Apply battery positive voltage to cruise control switch terminal 3F, and connect terminal 3B to ground.

am3uuw00013333

6.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the cruise control switch.
