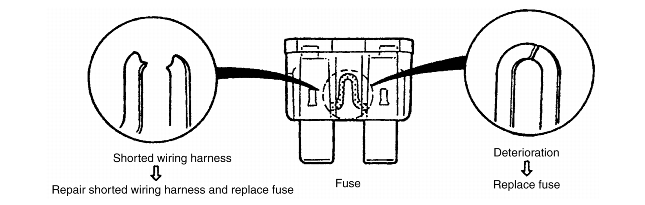

Damaged fuse
|
Related wiring harness
|
|
MAIN
|
MAIN fuse
• BTN fuse
• IG KEY2 fuse
• FAN fuse
• Generator
|
|
BTN
|
BTN fuse
• ROOM fuse
|
|
ROOM
|
ROOM fuse
• DLC-2
|
|
IG KEY2
|
IG KEY2 fuse
• Ignition switch
|
|
FAN
|
FAN fuse
• Cooling fan relay No.1
• Cooling fan relay No.2
|
|
ENG COMP1
|
ENG COMP1 fuse
• PCM
|
|
IG KEY1
|
IG KEY1 fuse
• Ignition switch
-
- ENGINE fuse
|
|
ENGINE
|
ENGINE fuse
• PCM
• Cooling fan relay No.1
• Cooling fan relay No.2
|
|
ETV
|
ETV fuse
• Drive-by-wire relay
|
|
FUEL PUMP
|
FUEL PUMP fuse
• Main relay
• Fuel pump relay
|
|
EGI COMP2
|
EGI COMP2 fuse
• PCM
|
|
EGI INJ
|
EGI INJ fuse
• PCM
• VSS (ATX)
• Fuel pump relay
|
