IGNITION TIMING INSPECTION [ZY]
id0110000636c0
-
Note
-
• The ignition timing cannot be adjusted.
1. Complete the engine tune-up preparation.
-
Note
-
• Use a timing light that can detect the primary ignition signal.
2. By referring to the following procedure, connect the timing light to the PCM terminal 2D wire.
-
Caution
-
• To prevent poor contact at the connector terminal, be careful not to pull the wire on the connector side.
-
Note
-

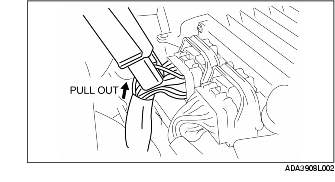

• Pull out the wire 20-30 mm {0.79-1.18 in} so that the pickup clip of the timing light can be connected. After the ignition timing inspection, bundle the pulled out wire back together with other wires using tape.
-
(1) Pull the PCM terminal 2D wire out of the bundle (pull the bundled side only, not the connector side).

-
(2) Connect the pickup clip of the timing light to the PCM terminal 2D wire.
3. Verify that the crankshaft pulley alignment mark (white) is within the specification.
Ignition timing
-
Approx. BTDC 10°
4. Verify that ignition timing advances when the engine speed increases gradually.
