OIL CONTROL VALVE (OCV) CONSTRUCTION [ZY]

id0110001024c0

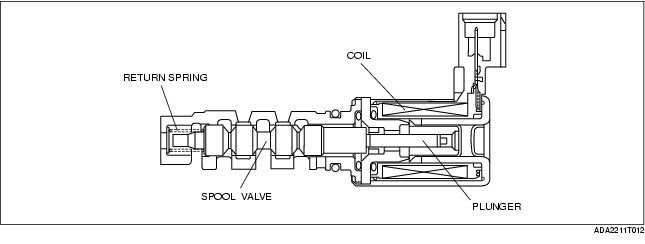

• The oil control valve (OCV) consists of a spool valve that switches the passages for engine oil, a coil that moves the spool valve, a plunger, and a return spring.
