DRIVE BELT CONSTRUCTION [ZY]

id0110001025c0

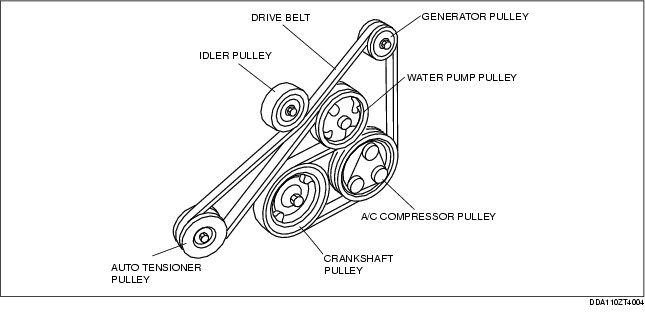

• A serpentine-type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.

• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
