ENGINE OIL LEVEL INSPECTION [ZY]


id0111008005c0

1. Position the vehicle on level ground.

2. Warm up the engine to normal operating temperature.

3. Stop the engine and wait for 5 min.

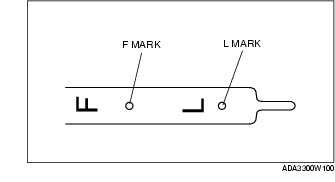

4. Remove the dipstick and verify that the oil level is between the F and L marks on the dipstick.

• If the oil level is below the L mark, add the oil.
