INTAKE MANIFOLD STRUCTURE [ZY]

id0113001008c8

Structure

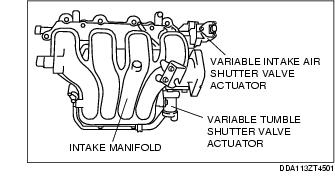

• The intake manifold is composed of the variable intake air shutter valve actuator and variable tumble shutter valve actuator.

• The intake manifold is made of resin for weight reduction.

• By lengthening the long intake pipe, charging efficiency at low to middle engine speeds is enhanced for higher torque.
