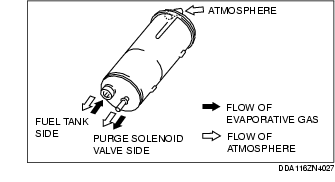

CHARCOAL CANISTER CONSTRUCTION/OPERATION [ZY]

id0116001020c0

• It is located on the fuel tank.

• During purge solenoid valve operation, atmosphere enters the charcoal canister from the atmospheric orifice to entirely flood the activated charcoal and release the evaporative gas.
