EGR VALVE CONSTRUCTION/OPERATION [ZY]

id0116001026c0

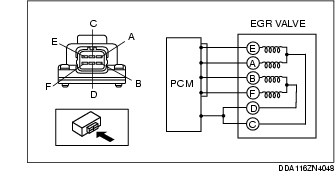

• Consists of a rotor, coils, and a spring.

• Operates based on the signal from the PCM to drive the EGR valve stepping motor.

• The PCM determines the optimum EGR valve opening angle based on the engine speed and intake air amount when the engine is completely warmed up and drives the EGR valve.
