POSITIVE CRANKCASE VENTILATION (PCV) VALVE CONSTRUCTION/OPERATION [ZY]

id0116001501c0

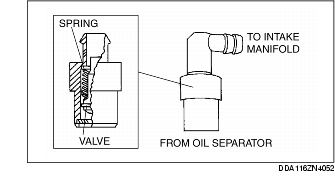

• Consists of a spring and valves.

• The PCV valve ensures the passage of blowby gas by opening the valve according to the intake manifold vacuum, and adjusts the amount of gas by spring force.
