GENERATOR DISASSEMBLY/ASSEMBLY [ZY]
id0117008004b0
-
Caution
-
• Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

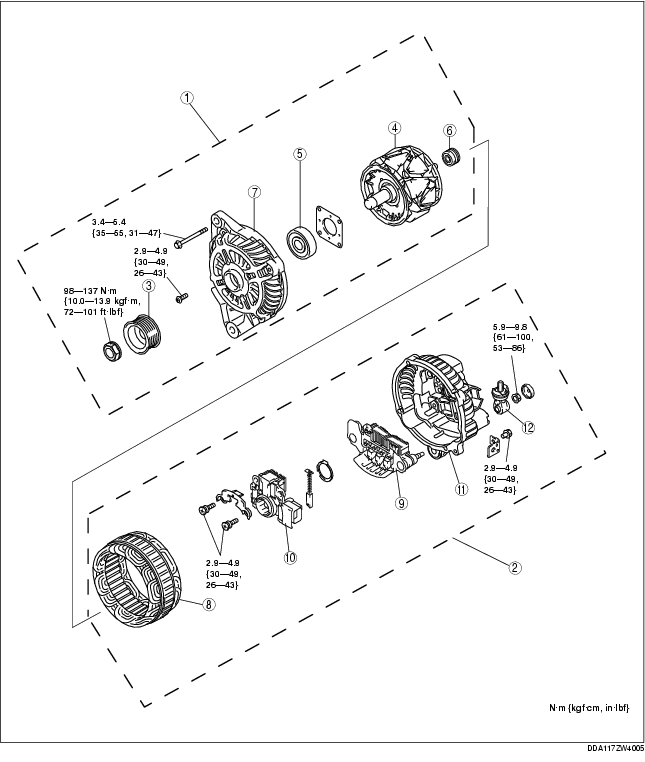

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
.
|
1
|
Rotar assembly
|
|
2
|
Stator assembly
|
|
3
|
Pulley
|
|
4
|
Rotor
|
|
5
|
Front bearing
|
|
6
|
Rear bearing
|
|
7
|
Front cover
|
|
8
|
Stator coil
|
|
9
|
Rectifier
|
|
10
|
Brush holder (built-in power transistor)
|
|
11
|
Rear cover
|
|
12
|
Terminal B component
|
