IGNITION COIL OPERATION [ZY]

id0118001459b5

• The firing timing of the coil is controlled by the PCM by means of a built-in igniter.

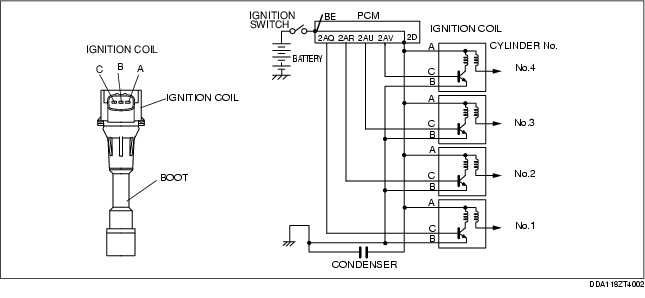

Terminal layout


Terminal		Signal
3 terminals	A	Power supply
	B	Ground
	C	Ignition coil control signal
