IGNITION COIL REMOVAL/INSTALLATION [ZY]


id0118008002b5

1. Disconnect the negative battery cable.

2. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY].)

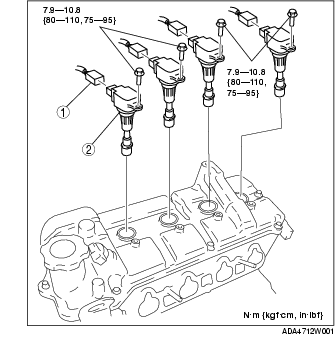

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1
Connector
2
Ignition coil
