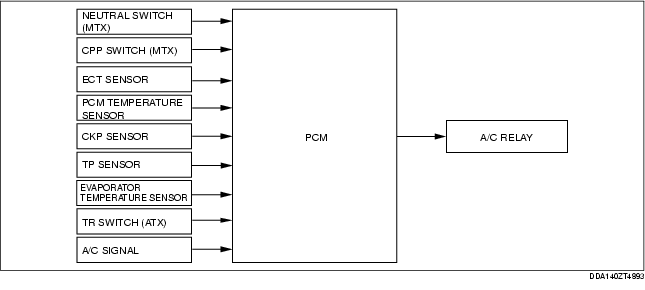

A/C CUT-OFF CONTROL BLOCK DIAGRAM [ZY]

id0140001036c0

• The PCM determines the engine operation conditions based on signals from the various input parts and sends an on/off control signal to the A/C relay.
