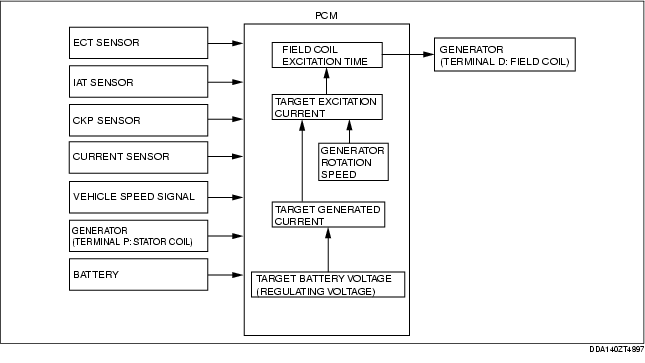

GENERATOR CONTROL BLOCK DIAGRAM [ZY]
id0140001724c0
• The PCM determines the engine operation and electrical load conditions based on input signals, and controls excitation time of the generator field coil.
