INTAKE AIR TEMPERATURE (IAT) SENSOR CONSTRUCTION/OPERATION [ZY]

id0140001736c0

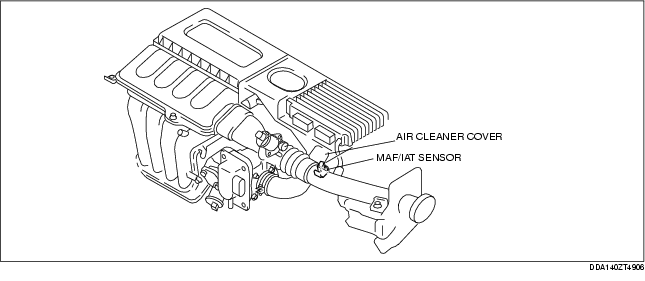

• Installed on the air cleaner cover.

• Built into the MAF sensor.

• A thermistor type is used and the resistance changes according to the IAT.

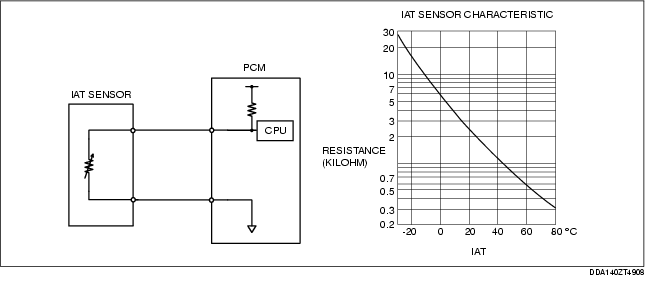

• As shown in the characteristics graph, when the IAT is high, the resistance is low, and when the IAT is low, the resistance is high.
