PCM TEMPERATURE SENSOR CONSTRUCTION/OPERATION [ZY]

id0140001819c0

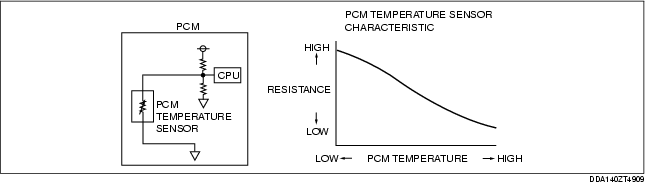

• The PCM temperature sensor is built into the PCM.

• With the thermistor, the output voltage changes according to the PCM temperature.
