CAMSHAFT POSITION (CMP) SENSOR INSPECTION [ZY]

Note

• Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See Troubleshooting Procedure.)

Visual inspection

1. Remove the CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [ZY].)

2. Verify that there are no metal shavings on the sensor.

3. Install the CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [ZY].)

Voltage inspection

1. Idle the engine.

Caution

• Water penetrating the connector will cause sensor malfunction. To prevent this, be careful not to damage the wiring harnesses or the waterproof connector so as to cause water penetration.

2. Measure the output voltage using a oscilloscope.

• If not within the specification, replace the CMP sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [ZY].)

• If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the "Circuit Open/Short Inspection".

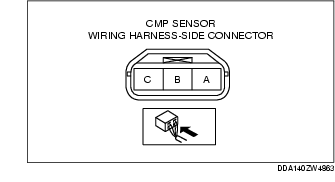

CMP sensor voltage

Terminal	Voltage (V)	Condition
A	B+	Under any condition
B	4.8 or more	High output*
	0.8 or less	Low output*
C	0	Under any condition

^* :

Output voltage varies with camshaft rotation.

Circuit Open/Short Inspection

1. Remove the PCM connector cover.

2. Disconnect the PCM connector. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY].)

3. Inspect the following wiring harness for open or short circuit (Continuity inspection).

Open circuit

• If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

- CMP sensor terminal A and PCM terminal 2I

- CMP sensor terminal B and PCM terminal 2N

- CMP sensor terminal C and PCM terminal 2M

Short circuit

• If there is continuity, there is an short circuit. Repair or replace the wiring harness.

- CMP sensor terminal A and body GND

- CMP sensor terminal B and power supply

- CMP sensor terminal B and body GND

- CMP sensor terminal C and power supply
