CURRENT SENSOR REMOVAL/INSTALLATION [ZY]

id0140008054c0

Warning

• If the negative battery cable contacts a metal part, it can cause fire or damage to the electrical components.When removing the current sensor, be careful not to contact a metal part, and always hold the negative battery cable in your hand.

1. Disconnect the negative battery cable.

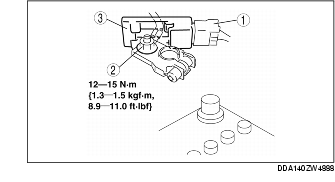

2. Remove in the order indicated in the table.


1	Connector
2	Nut
3	Current sensor

3. Install in the reverse order of removal.
