MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [ZY]

1. Disconnect the negative battery cable.

2. Perform the following procedure for easier access

(1) Remove the air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY].)

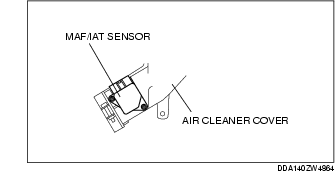

3. Remove the MAF/IAT sensor.

4. Install in the reverse order of removal.

MAF/IAT sensor tightening torque

0.55-0.82 N·m {5.7-8.3 kgf·cm, 4.9-7.2 in·lbf}
