WHEEL HUB BOLT REPLACEMENT


id031200800800

1. Remove the brake drum component. (See BRAKE DRUM REPLACEMENT.)

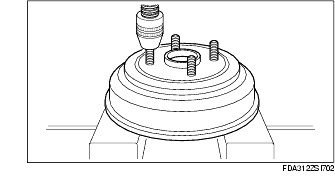

2. Remove the wheel hub bolt using a press as shown in the figure.

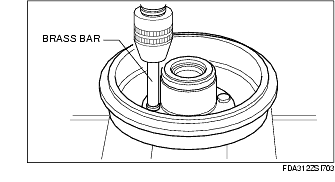

3. Install a new wheel hub bolt using a press and a proper sized brass bar as shown in the figure.
