ON-BOARD DIAGNOSTIC SYSTEM EXTERNAL TESTER COMMUNICATION FUNCTION
id040200181600
• The external tester communication function communicates diagnostic information (reading DTCs, reading input/output signal, driving output parts) by sending and receiving signals between the ABS HU/CM and external tester.
Connection and communication information
|
|
External tester
|
|
WDS or equivalent
|
|
Connection
|
Communication method
|
|
On-board diagnostic (malfunction detection) function
|
Input/output: KLN signal
|
Serial communication
|
|
Data monitor function
|
Input/output: KLN signal
|
Serial communication
|
|
Active command modes function
|
Input/output: KLN signal
|
Serial communication
|
Serial Communication
• Serial communication (synchronous communication) is a method of communication in which many pieces of information are sent and received instantaneously through a single wire.

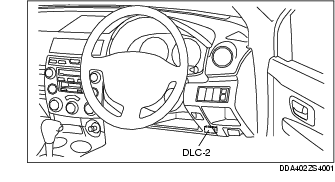

• By connecting the WDS or equivalent to DLC-2, diagnostic information can be sent and received between the WDS or equivalent and the ABS HU/CM via the KLN terminal.
• The ABS HU/CM receives signals for the malfunction detection function, data monitor function, and active command modes function from the WDS or equivalent, and sends information about DTCs and input/output part operating conditions to the WDS or equivalent.
|
Diagnostic function
|
Signal received
|
Signal sent
|
|
Malfunction detection function
|
DTC verification signal
|
DTC
|
|
Data monitor function
|
Request signal to read selected monitor item
|
Monitor information for requested monitor item
|
|
Active command modes function
|
Request signal to read selected active command modes item
|
Output part drive signal
|
