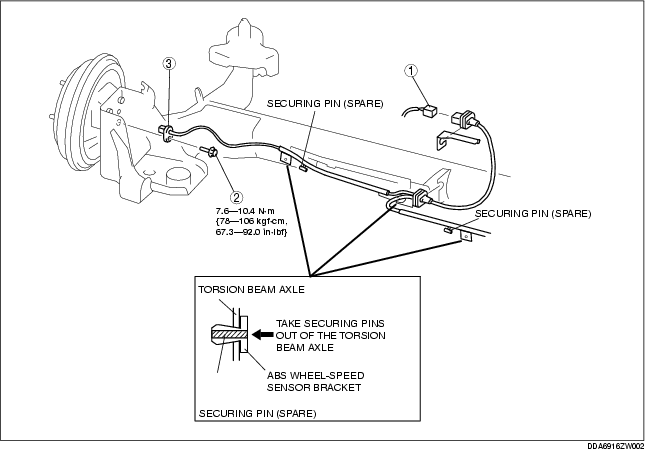

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION


id041300800500

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

1
Connector
2
Bolt
3
Rear ABS wheel-speed sensor
