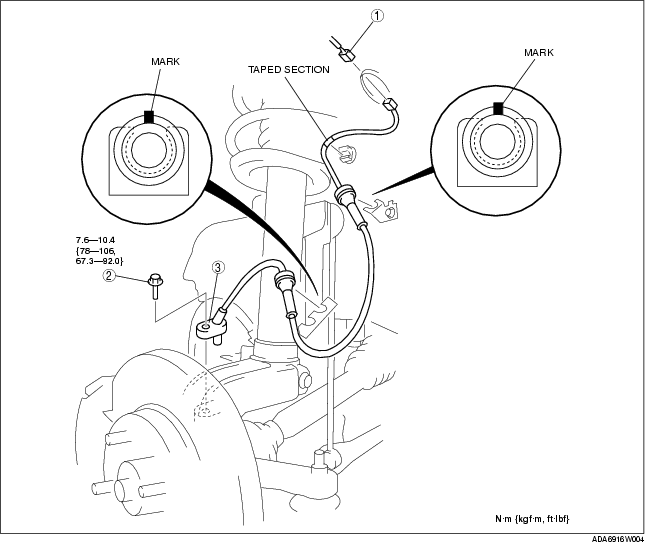

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION


id041300800700

1. Remove the mudguard.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

1
Connector
2
Bolt
3
Front ABS wheel-speed sensor
