FOREWORD [FN4A-EL]

id0502a1800200

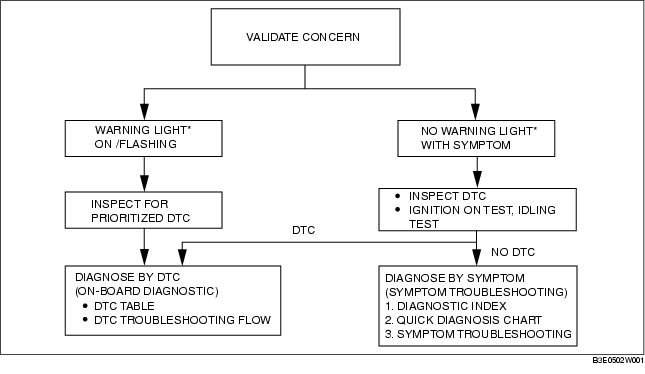

• When the customer reports a vehicle malfunction, inspect the malfunction indicator lamp (MIL), HOLD indicator light^*1, AT warning light ^*2 indication, and PCM memory for diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart.

- If a DTC exists, diagnose the applicable DTC. (See DTC TABLE [FN4A-EL].)

- If no DTC exists, the MIL does not illuminate, and AT warning light does not illuminate. Diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL].)

* :

Malfunction indicator lamp (MIL), HOLD indicator light^*1, AT warning light ^*2

^*1 :

4AT

^*2 :

Sport AT
