CLUTCH RELEASE COLLAR INSPECTION

Caution

• Cleaning the clutch release collar with cleaning fluids or a steam cleaner can

wash the grease out of the sealed bearing.

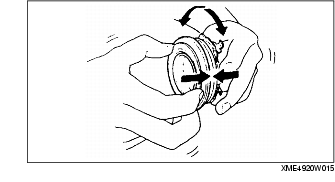

1. Turn the collar while applying force in the axial direction.

• If the collar sticks or has excessive resistance, replace the clutch release collar.
