DOUBLE CONE SYNCHRONIZER MECHANISM STRUCTURE [F35M-R]

id0515001028a1

Features

• A double cone synchronizer mechanism is used for the 1st and 2nd gears.

• The double cone synchronizer mechanism is a compact device capable of heavy duty meshing.

• The double cone synchronizer mechanism reduces meshing time and improves operation.

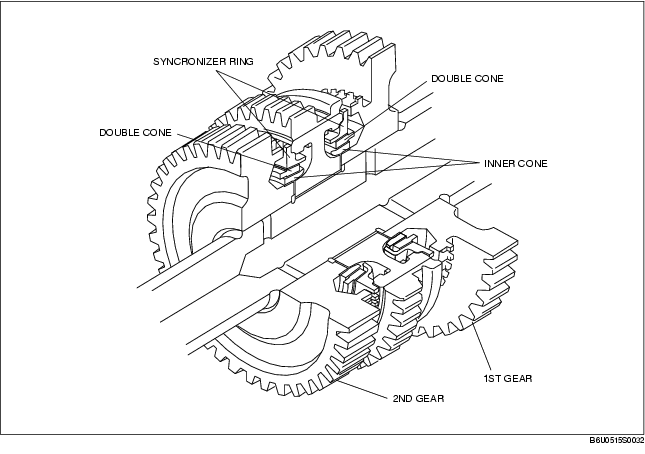

• The double cone synchronizer mechanism includes a synchronizer ring, a double cone, and an inner cone.
