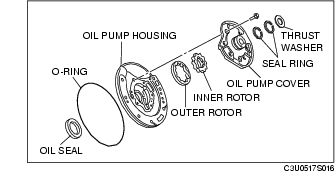

OIL PUMP STRUCTURE [FN4A-EL]

id0517a1003100

• The outer rotor and the inner rotor are installed in the oil pump housing.

• The inner rotor in the oil pump housing is driven by the torque converter.
