TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR CONSTRUCTION/OPERATION [FN4A-EL]
id0517a1109000
• The TFT sensor is a thermistor type and the resistance changes according to the ATF temperature.

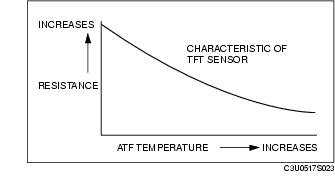

• The characteristic of the resistance is as shown in the figure below: when the ATF temperature increases, the resistance decreases, and when the ATF temperature decreases, the resistance increases.
