INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION [FN4A-EL]

id0517a1801300

1. Disconnect the negative battery cable.

2. Remove the battery, battery tray and battery tray bracket.

3. Disconnect the input/turbine speed sensor connector.

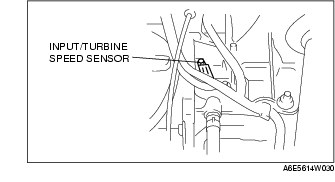

4. Remove the input/turbine speed sensor.

5. Apply ATF to a new O-ring and install it on the input/turbine speed sensor.

6. Install the input/turbine speed sensor.

Tightening torque

8-11 N·m {82-112 kgf·cm, 71-97 in·lbf}

7. Connect the input/turbine speed sensor connector.

8. Install the battery tray bracket, battery tray and battery.

9. Connect the negative battery cable.
