EPS CONTROL MODULE REMOVAL/INSTALLATION

id061300283100

1. Remove the front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2. Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

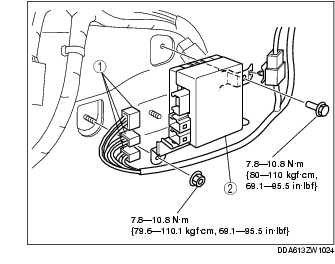

3. Remove in the order indicated in the table.


1	Connector
2	EPS CM

4. Install in the reverse order of removal.

5. After installation, configure the EPS CM. (See EPS CONTROL MODULE CONFIGURATION.)
