REAR HEAT DUCT REMOVAL/INSTALLATION


id071100800900

1. Partially peel back the front floor covering. (See FLOOR COVERING REMOVAL/INSTALLATION.)

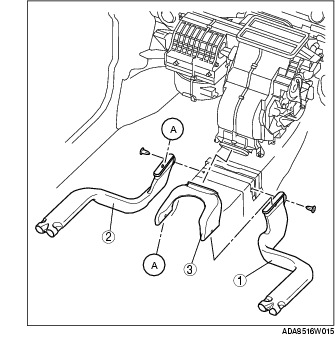

2. Remove in the order indicated in the table.

1
Rear heat duct (2)
2
Rear heat duct (3)
3
Rear heat duct (1)

3. Install in the reverse order of removal.
