MAGNETIC CLUTCH INSPECTION

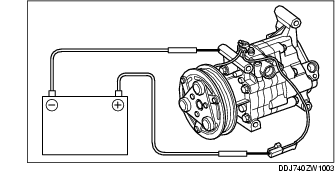

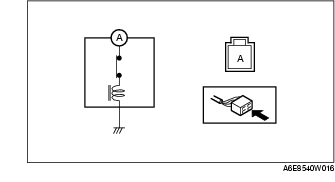

1. Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.

2. Verify that the magnetic clutch operates.

• If there is any malfunction, replace the stator and thermal protector.
