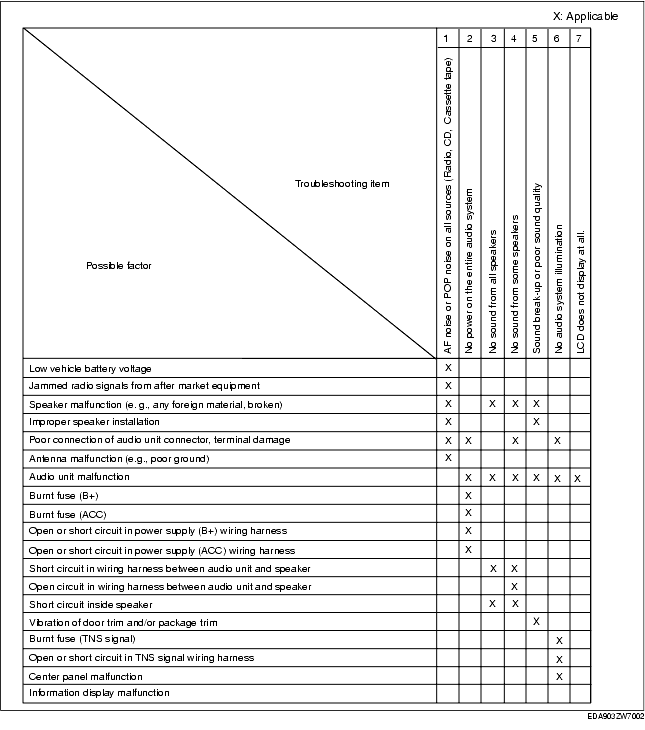

No.
|
Symptom
|
Possible DTC
|
|
1
|
AF noise or POP noise at all sources (Radio, CD, Cassette tape)
|
09:Er20
|
|
2
|
No power to the entire audio system
|
09:Er20
|
|
3
|
No sound from all speakers
|
00:Er10, 03:Er07, 03:Er10, 09:Er20
|
|
4
|
No sound from some speakers
|
-
|
|
5
|
Sound break-up or poor sound quality
|
-
|
|
6
|
No audio system illumination
|
09:Er20, 21:Er19
|
|
7
|
LCD does not display at all.
|
09:Er20, 21:Er19
|
