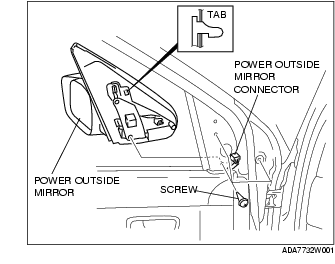

POWER OUTER MIRROR REMOVAL/INSTALLATION


id091200420800

1. Disconnect the negative battery cable.

2. Remove the inner garnish.

3. Disconnect the power outer mirror connector.

4. Remove the screws, then disengage the tab from the body.

5. Remove the power outer mirror.

6. Install in the reverse order of removal.
