POWER OUTER MIRROR INSPECTION
id091200420900

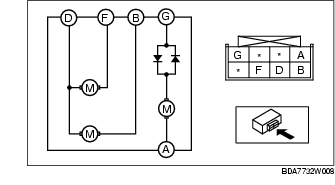

1. Apply battery positive voltage to the power outer mirror terminals and inspect the power outer mirror operation.
-
• If not as specified, replace the power outer mirror.
|
Mirror operation
|
Terminal
|
|
B+
|
GND
|
|
Up
|
B
|
D
|
|
Down
|
D
|
B
|
|
Left
|
F
|
D
|
|
Right
|
D
|
F
|
|
Retract
|
G
|
A
|
|
Return
|
A
|
G
|
