FRONT SEAT DISASSEMBLY/ASSEMBLY
id091300800300
With Side Air Bag
-
Warning
-
• Handling the front seat (side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat. (See SERVICE WARNINGS.) (See SERVICE CAUTIONS.)
1. Disconnect the negative battery cable and wait for more than 1 minute.
2. Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

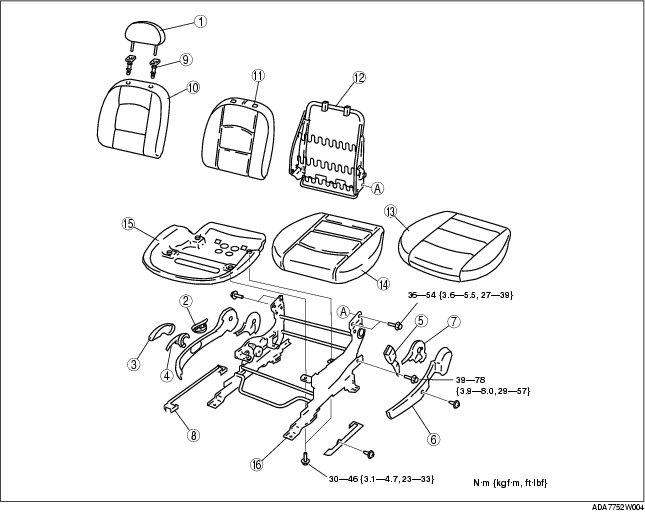

3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.
|
1
|
Headrest
|
|
2
|
Recliner lever (lever type)
|
|
3
|
Lifter lever
|
|
4
|
Lifter lever cover
|
|
5
|
Front buckle
|
|
6
|
Side cover
|
|
7
|
Reverse cover
|
|
8
|
Rail cover
|
|
9
|
Pole guide
|
|
10
|
Seat back trim
|
|
11
|
Seat back pad
|
|
12
|
Seat back frame
|
|
13
|
Seat cushion trim
|
|
14
|
Seat cushion pad
|
|
15
|
Seat cushion frame
|
|
16
|
Slide adjuster
|
Without Side Air Bag
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
|
1
|
Headrest
|
|
2
|
Recliner lever (lever type)
|
|
3
|
Lifter lever
|
|
4
|
Lifter lever cover
|
|
5
|
Front buckle
|
|
6
|
Side cover
|
|
7
|
Reverse cover
|
|
8
|
Rail cover
|
|
9
|
Pole guide
|
|
10
|
Seat back trim
|
|
11
|
Seat back pad
|
|
12
|
Seat back frame
|
|
13
|
Seat cushion trim
|
|
14
|
Seat cushion pad
|
|
15
|
Seat cushion frame
|
|
16
|
Slide adjuster
|
