LIFTGATE LOCK ACTUATOR INSPECTION
id091400804400

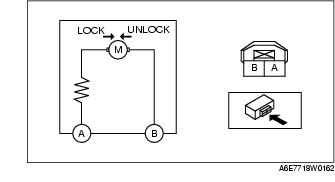

1. Apply battery positive voltage to the liftgate lock actuator terminals and inspect the liftgate lock actuator operation.
-
• If not as specified, replace the liftgate lock.
|
Actuator operation
|
Terminal
|
|
A
|
B
|
|
Lock
|
B+
|
GND
|
|
Unlock
|
GND
|
B+
|
