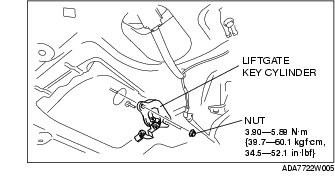

LIFTGATE KEY CYLINDER REMOVAL/INSTALLATION


id091400808300

1. Detach the liftgate key cylinder rod.

2. Remove the nuts, then remove the liftgate key cylinder.

3. Install in the reverse order of removal.
