ROOF MOLDING INSTALLATION


id091600447600

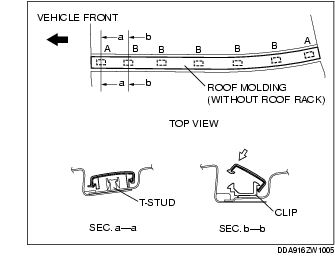

1. Attach the roof molding to the T-stud at front side section A.

2. Hook the roof molding to clips B, and push it in.

3. Attach the roof molding to the T-stud at rear side section A. (Vehicles without roof rack)
