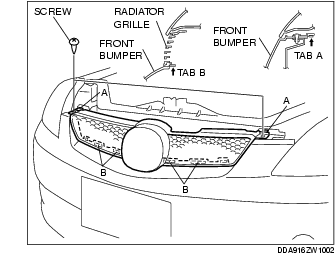

RADIATOR GRILLE REMOVAL/INSTALLATION


id091600449700

Standard

1. Remove the screw.

2. Remove tab A.

3. Press tab B in the direction of the arrow and pull the radiator grille to remove it from the front bumper.

4. Install in the reverse order of removal./0
