SIDE PROTECTOR INSTALLATION

1. Remove the adhesive remaining on the side protector and the body using a razor.

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

2. Remove any grease or dirt from the adhesion surface of the side protector and the body.

3. Attach double-sided adhesive tape to the side protector as shown in the figure.

a: 29-31 mm {1.15-1.22 in}

b: 2.0-4.0 mm {0.08-0.15 in}

c: 11-13 mm {0.44-0.51 in}

d: 2.0-4.0 mm {0.08-0.15 in}

e: 1.0-3.0 mm {0.04-0.11 in}

f: 5.0 mm {0.2 in}

g: 1.0-3.0 mm {0.04-0.11 in}

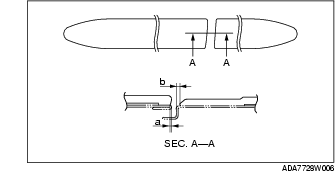

4. Peel off the backing paper from the double-sided adhesive tape and attach the side protector onto the body as shown in the figure.

a: 1.2-4.2 mm {0.05-0.16 in}

b: 3.6-6.6 mm {0.14-0.25 in}
