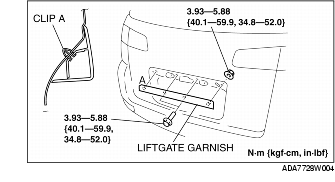

LIFTGATE GARNISH REMOVAL/INSTALLATION


id091600930500

1. Remove the bolts.

2. Remove the liftgate trim.

3. Remove the nut.

4. Disengage clip A from the body by squeezing it from inside of the vehicle, and remove the liftgate garnish.

5. Install in the reverse order of removal.
