1. Remove the passenger-side air bag module. (SeePASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2. Remove the audio unit.
3. Remove the climate control unit.

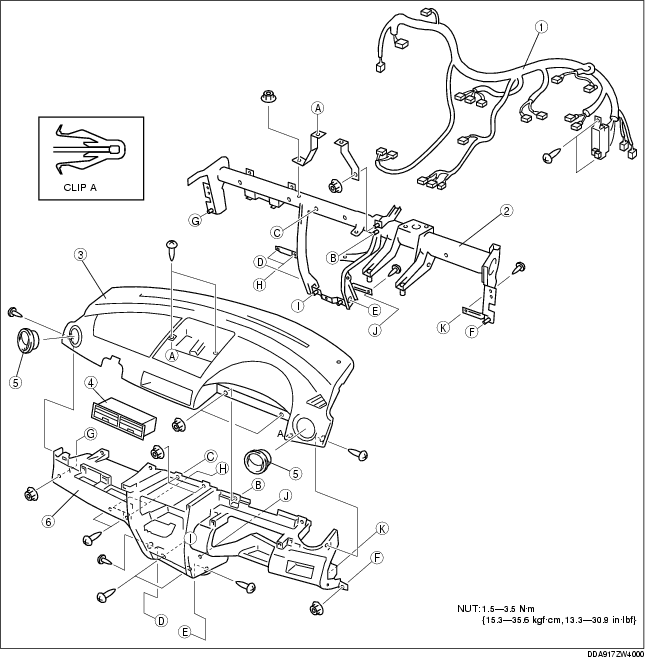

4. Disassemble in the order indicated in the table.
5. Assemble in the reverse order of disassembly.
|
1
|
Dashboard harness
|
|
2
|
Dashboard member
|
|
3
|
Upper dashboard
|
|
4
|
Center ventilator grille
|
|
5
|
Side ventilator grille
|
|
6
|
Lower dashboard
|
